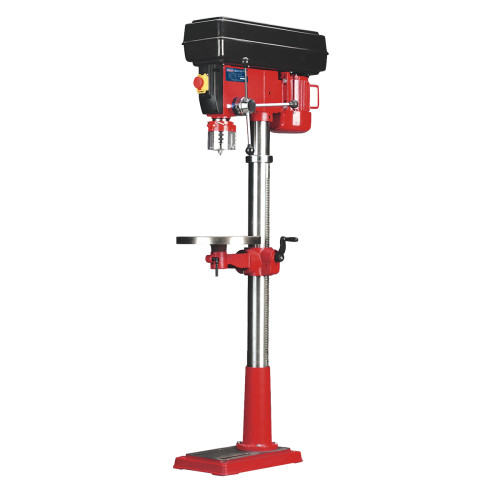

Sealey Floor Standing Pillar Drill Variable Speed 650W/230V GDM200F/VS
Achieve precision drilling with the Sealey Floor Standing Pillar Drill Variable Speed 650W/230V (GDM200F/VS), a powerful and versatile machine designed for professional workshops and educational environments. Featuring variable speed control, it allows smooth, stepless adjustment between minimum and maximum speeds for greater accuracy, improved finish, and tighter tolerances.
Powered by a 650W input motor (450W output), this pillar drill uses a belt transmission system with spring-tensioned cone pulleys, delivering consistent performance and easy speed adjustment via a control lever. The 16mm (5/8") capacity chuck with No.2 MT spindle provides reliable gripping for a wide range of drilling applications.
Built with safety in mind, it includes a no-volt release switch—ideal for compliance in educational settings—as well as a chuck guard for added operator protection. With a spindle travel of 80mm, 178mm spindle-to-column distance, and a sturdy 80mm column, it offers excellent stability and working capacity.
Features
- Variable speed model allows stepless control of drilling speed between minimum and maximum enabling finer control of finish and tolerance.

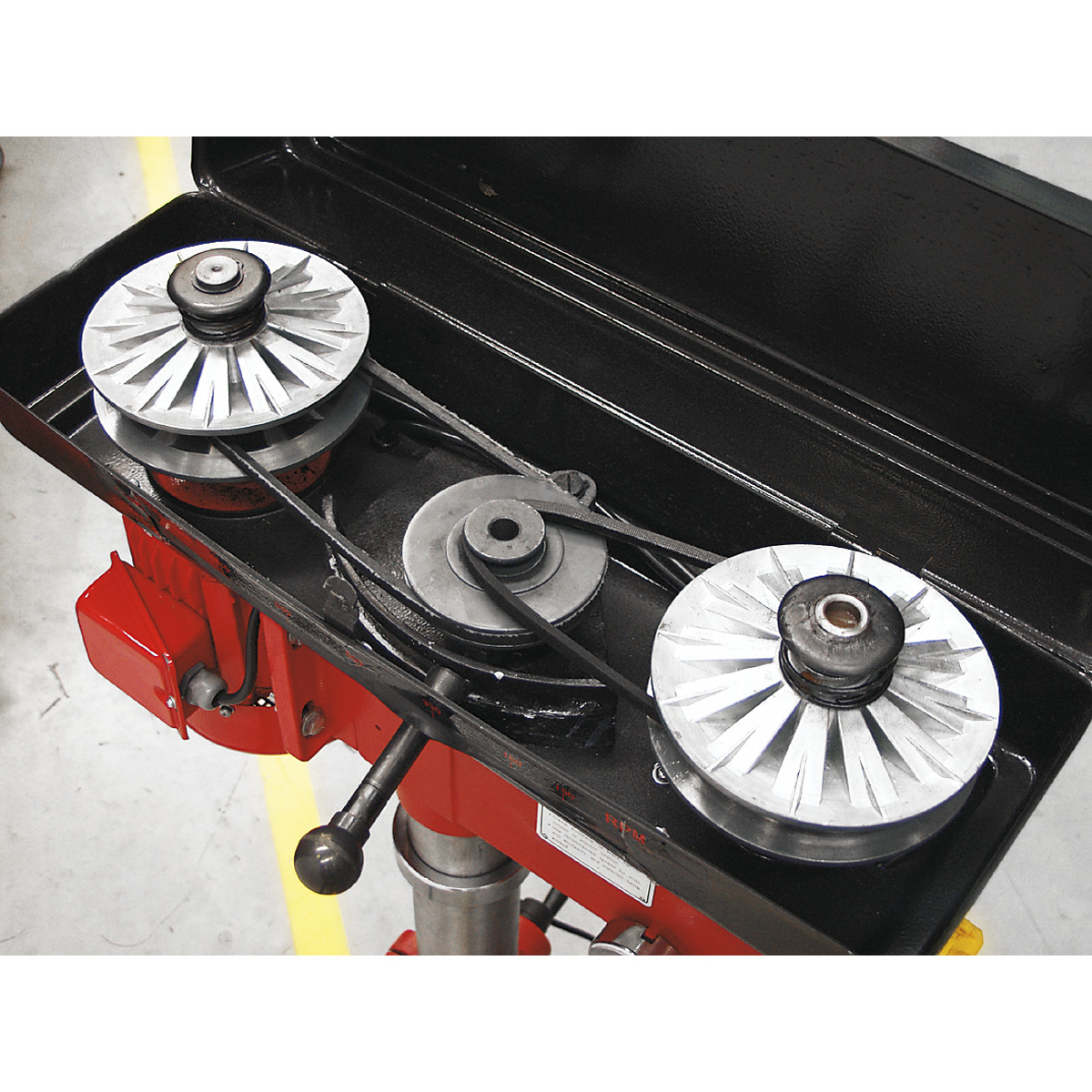

- The belt transmission uses two spring tensioned cone pulleys, the diameter of which can be adjusted by moving a centre idle pulley with the speed adjustment control lever.
- Safety devices fitted include a no-volt release switch, allowing insurance company approval for use in educational establishments.
- Supplied with chuck guard.
- Mortise attachment available, order Model No. MA10.
- 16mm(5/8") Capacity chuck No. 2MT.
- Height: 1630mm.
- Spindle Centre to Column: 178mm.
- Motor Power: 450W, Input Power: 650W.
- Column Diameter: 80mm.
- Spindle Travel: 80mm.
- Weight: 71kg.
- Part Number: GDM200F/VS
Specifications
| Base Size: | 460 x 275mm |
| Collar Diameter: | Ø60mm |
| Column Diameter: | Ø80mm |
| Drilling Capacity (Chuck Size): | 16mm |
| Maximum Distance Spindle to Base: | 1170mm |
| Maximum Distance Spindle to Table: | 730mm |
| Motor Power (Start): | 450W(650W) |
| Number of Speeds: | Variable |
| Optional Accessories: | GDMX/KC - Keyless Pillar Drill Chuck 16mm |
| Overall Height: | 1630mm |
| Speed Range: | 150-2300rpm |
| Spindle Centre to Column: | 178mm |
| Spindle Nose Taper: | MT2 |
| Spindle Travel: | 80mm |
| Supply: | 230V |
| Swing: | 356mm |
| Working Base Surface Size: | 200 x 220mm |
| Working Table Surface Size: | Ø310mm |
| Nett Weight: | 71kg |
