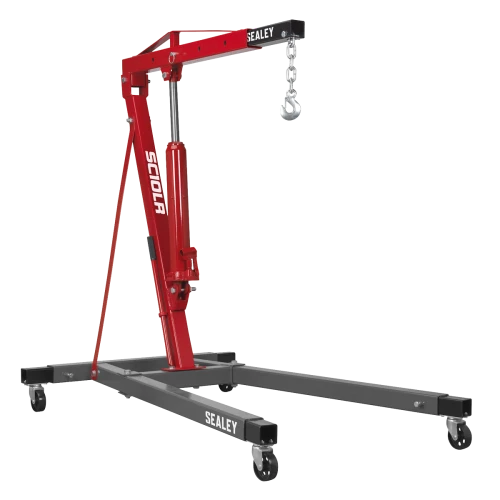

Sealey Long Reach Engine Crane with Extendable Legs 1 Tonne SC10LR
The Sealey Long Reach Engine Crane with Extendable Legs 1 Tonne is a heavy-duty lifting solution designed for the safe removal, installation, and handling of engines and other heavy components. Ideal for professional workshops, vehicle repair garages, and serious automotive enthusiasts, its long-reach design provides the extra access needed when working on larger vehicles or deeper engine bays.
With a maximum lifting capacity of 1 tonne, the crane features an extended jib with a maximum reach of 1447mm, making it easier to access engines positioned further into the vehicle. For enhanced stability during lifting, the front and rear castors are mounted on extendable legs, providing a wider footprint and greater support, particularly when operating at full jib extension. The crane is equipped with a side-mounted hydraulic pump, allowing the operator to maintain a clear view of the load throughout the lifting process while providing easier access to the pump handle. A removable operating handle offers additional convenience and simplifies storage when the crane is not in use.
Designed with practicality in mind, the crane features a folding frame that allows it to be quickly collapsed for compact storage or easier transportation between jobs. It is supplied in knock-down form for straightforward assembly.
Strong, stable, and engineered for demanding lifting applications, the Sealey Long Reach Engine Crane with Extendable Legs 1 Tonne provides the reach, stability, and reliability required for safe and efficient engine handling in professional and home workshop environments.
Features
- LONG REACH - Heavy-duty front and rear castors are on extendable legs to give improved stability, particularly when operating at maximum jib extension of 1447mm.
- SUSTAIN VIEW - Side pump for easy access and to maintain sight of the load being lifted. Removeable handle.
- FOLDABLE - Folding design for easy transportation and storing.
- EASY ASSEMBLY - Delivered in knock-down form for reduced freight cost.
- Part Number SC10LR
Specifications
| Standard Leg Length: | 1450mm |
| Extended Leg Length: | 1590mm |
| Extendable Distance: | 140mm |
| Height Jib Down: | 1446mm |
| Height of Frame: | 180mm |
| Length Legs Extended: | 1600mm |
| Length of Jib Position 1: | 937mm |
| Length of Jib Position 2: | 1107mm |
| Length of Jib Position 3: | 1277mm |
| Length of Jib Position 4: | 1447mm |
| Length of Jib Position 5: | n/a |
| Length: | 1450mm |
| Lifting Capacity in Position 1: | 1000kg |
| Lifting Capacity in Position 2: | 750kg |
| Lifting Capacity in Position 3: | 500kg |
| Lifting Capacity in Position 4: | 250kg |
| Lifting Capacity in Position 5: | n/a |
| Max. Lift Ht at Jib Position 1: | 1750mm |
| Max. Lift Ht at Jib Position 2: | 1850mm |
| Max. Lift Ht at Jib Position 3: | 1950mm |
| Max. Lift Ht at Jib Position 4: | 2050mm |
| Max. Lift Ht at Jib Position 5: | n/a |
| Rear Width: | 860/1160mm |
| Width Front Frame: | 690-720mm |
| Width Inside Front Frame: | 381/605mm |
| Nett Weight: | 81.5kg |
